AETank : AE Tank Bottom Program

for Inspection Experts and Reviewers of Structural Failure.

Specially designed Software Applications for Acoustics Emission Testing (AET) and Non-destructive Testing (NDT)

for Detecting Structural Failure, Corrosion, Leakage and Crack.

AETank is the Advanced version of Acoustics Emission Data Analysis Program AEDAP3000 specially designed for Storage Tanks.

For further Assistance and Technical Support : Contact DIL Customer Care : +91-9945456000

AETank : AE Tank Bottom Program

AETank is the Advanced version of Acoustics Emission Data Analysis Program AEDAP3000 specially designed for Storage Tanks.

1. This method detects the micro seismic activity from failure mechanisms such as stress corrosion cracking, significant cracking as well as leaks.

2. The main purpose of this type inspection is the early detection of potential failure locations and allow planning for rectification and repairs.


Advanced Multi-Colored Graphs:

Graph 1 - HISTORIC ENERGY VS TIME

AETank : Graph 1 - HISTORIC ENERGY VS TIME

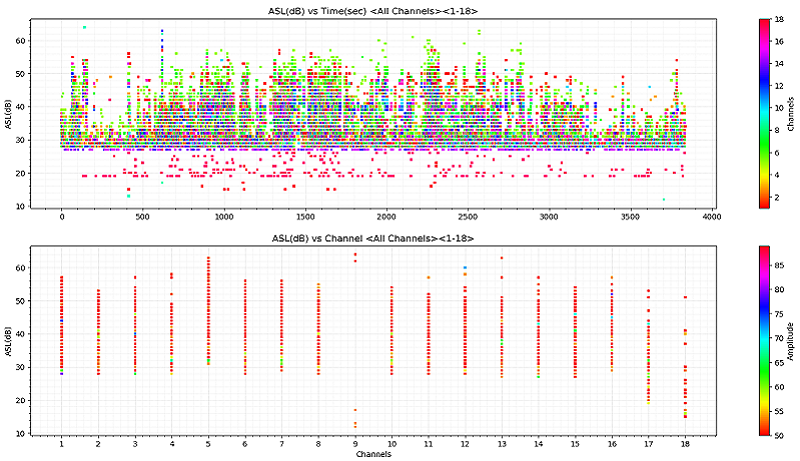

Graph 2 - ASL VS TIME & CHAN

AETank : Graph 2 - ASL VS TIME & CHAN

Graph 3 - ASL VS TIME LINE

AETank : Graph 3 - ASL VS TIME LINE

Graph 4 - CORRELATION

AETank : Graph 4 - CORRELATION

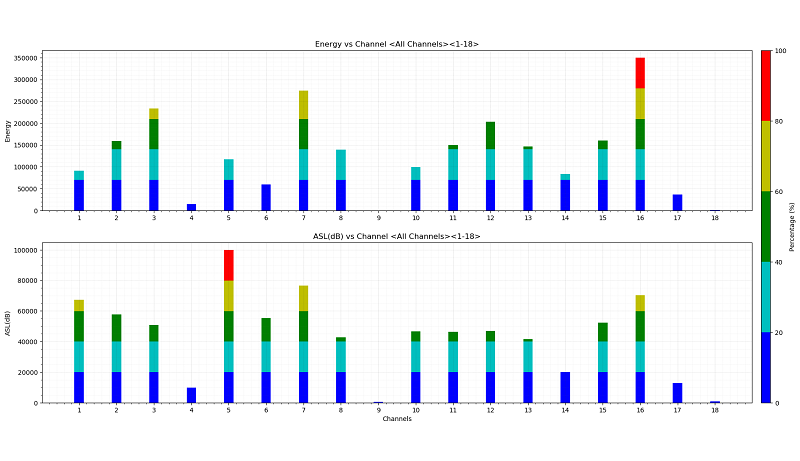

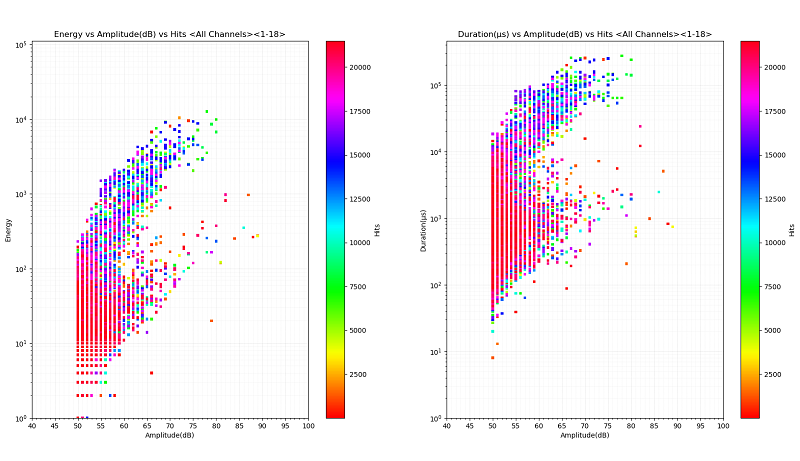

Graph 5 - ENERGY VS CHANNEL

AETank : Graph 5 - ENERGY VS CHANNEL

Advanced Algorithm for detecting / highlighting clusters as per fault location in the Tank Bottom / Side Walls:

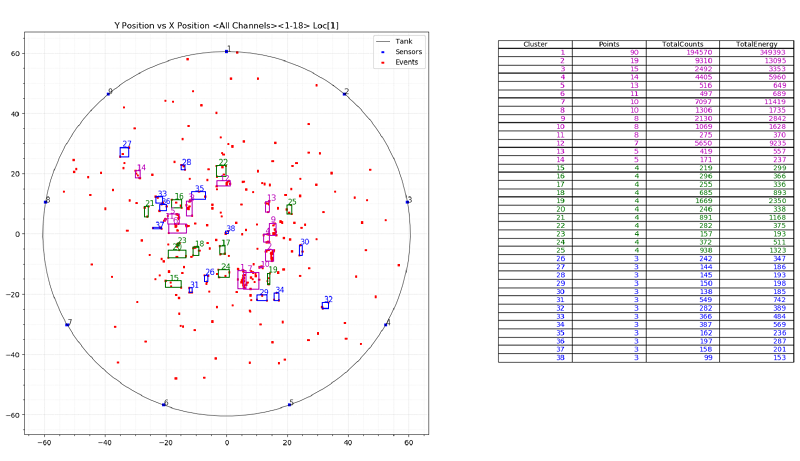

Graph 6 - TANK BOTTOM CLUSTER

AETank : Graph 6 - TANK BOTTOM CLUSTER

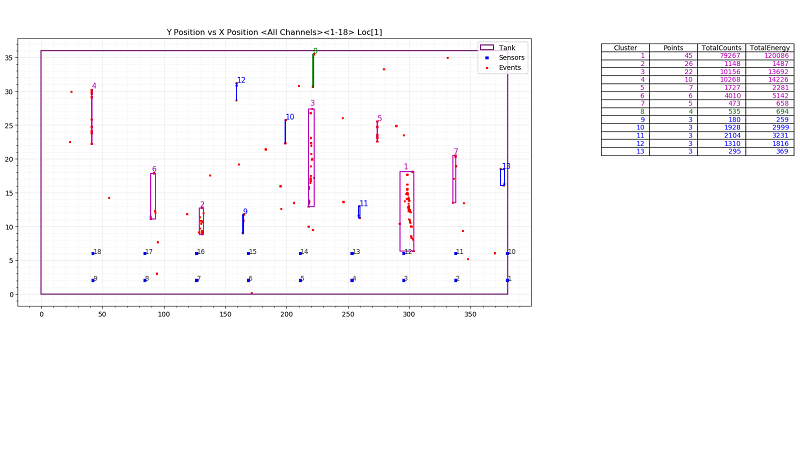

Graph 7 - PLANAR LOCATION

AETank : Graph 7 - PLANAR LOCATION

View 3D (360° rotatable) Interactive Multi-Colored Graphs:

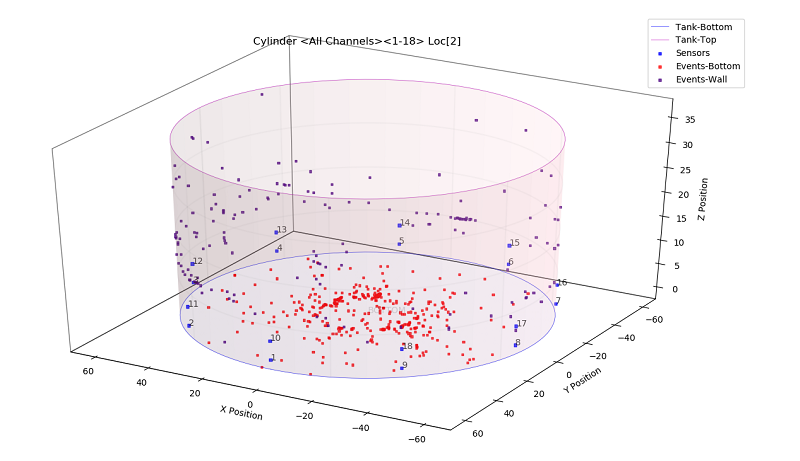

Graph 8 - TANK COMBO

AETank : Graph 8 - TANK COMBO

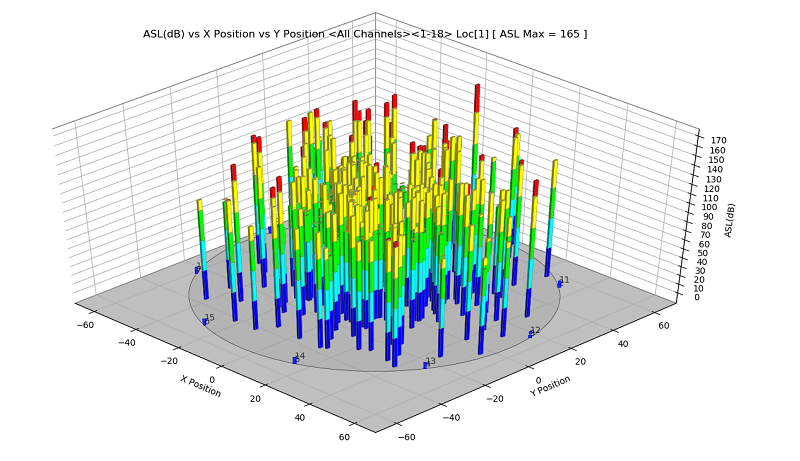

Graph 9 - 3D ASL TANK BOTTOM LOCATION

AETank : Graph 9 - 3D ASL TANK BOTTOM LOCATION

View Reports in Spreadsheet, Word document:

Report 1 - Tank Grading as per fault type

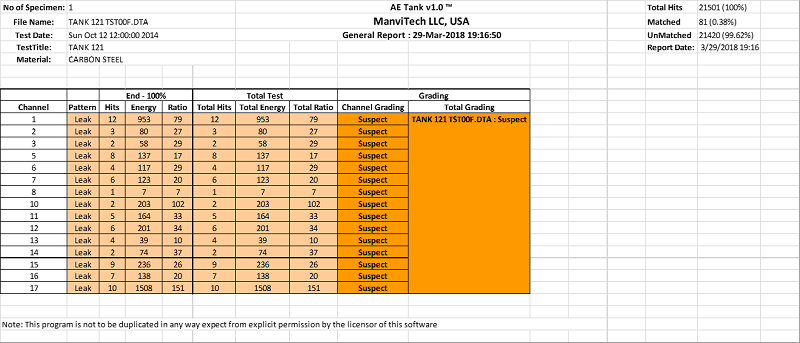

AETank : Report 1 - Tank Grading as per fault type in a spreadsheet.

Report 2 – Tank Bottom and Tank Wall grading based on location of fault clusters

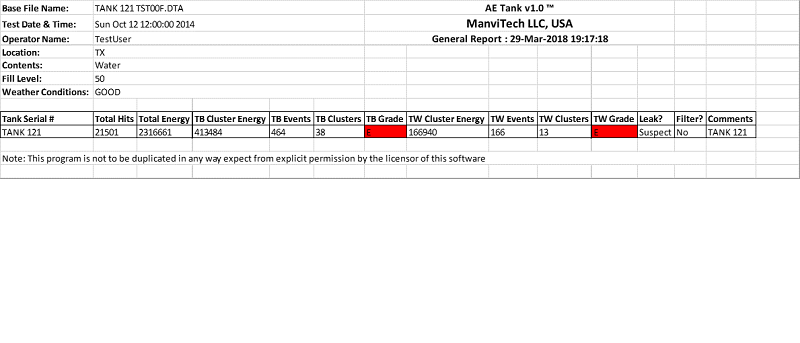

AETank : Report 2 – Tank Bottom and Tank Wall grading based on location of fault clusters in a spreadsheet.

AETank : AE Tank Bottom Program

Advantages of using AE Tank Bottom Program:

1. Multi-Colored, Rich Graphical images representing the problems / location of the fault.

2. Advanced Graphical Representation of the problems / location of the fault.

3. Advanced Algorithm for detecting Leak / location of the fault.

4. Advanced Algorithm for detecting / highlighting clusters as per fault location.

5. Summaries and Highlights of the problems / faults / location / clusters.

6. Preserves details of Calculations, Raw Data after generation of reports.

7. Detailed documentation of Test Reports, uses standard reporting format.

8. Highlighted color indicates Leak / Corrosion in the Tank Bottom / Side Walls.

9. View 3D (360° rotatable) Interactive Multi-Colored Graphs of any acoustic activity

Advanced Multi-Colored Graphs:

1 - HISTORIC ENERGY VS TIME

2 - ASL VS TIME & CHAN

3 - ASL VS TIME LINE

4 - CORRELATION

5 - ENERGY VS CHANNEL

6 - TANK BOTTOM CLUSTER

7 - PLANAR LOCATION

8 - TANK COMBO

9 - 3D ASL TANK BOTTOM LOCATION

View 3D (360° rotatable) Interactive Multi-Colored Graphs:

1 - TANK COMBO - CYLINDER

2 - 3D ASL TANK BOTTOM LOCATION

AE Tank Reports include:

1 – Tank Grading as per fault type in a spreadsheet.

2 – Tank Bottom and Tank Wall grading based on location of fault clusters in a spreadsheet.

3 – Final AE Tank Bottom Report including all the graphs, Test Data. uses standard reporting format in a word document.
