Digidon Labs Renewable Energy Knowledge Base


DIL WIND SOLAR HYBRID - ROOF TOP POWER GENERATION (RTPG)

Roof Top Power Generation (RTPG)

Any one can opt for Small Wind Turbine (SWT) & Solar Photovoltaic Panel (SPV) for Generation of Electricity on their Vacant Land or on their Building, Home, Industrial ROOF TOP.

We call it as the Roof Top Power Generation (RTPG)

Using this methods, one can easily Generate Electricity & Be on their own for Power & Electricity.

Energy Independence is a vital and key to Secure our Future Generation from Scarcity of Natural Resources.


Basic Laws of Conservation of Energy



Prevention is Better than Cure! :: Protection is Better than Repair!

Energy cannot be created nor destroyed, it can only converted from one form to the another.

No need to Depend on the Power Grid or RAW Power which Fails Frequently & causes Voltage & Frequency Fluctuations Resulting in Failure of our Equipment which are unique, Memorable & Precious.


POWER GENERATION - Methods & Description

There are Two Categories of Energy - Renewable Energy & Non-Renewable Energy.

1. RENEWABLE - Natural, Clean, Green and in Abundance. Solar Thermal, Solar Light, Wind, Geo Thermal, Tidal Waves, Bio Gas...

2. NON-RENEWABLE- Polluting, Dangerous, Limited. Coal, Natural Gas, Petroleum Bi-Products, Nuclear Energy (Efficient but too Dangerous)

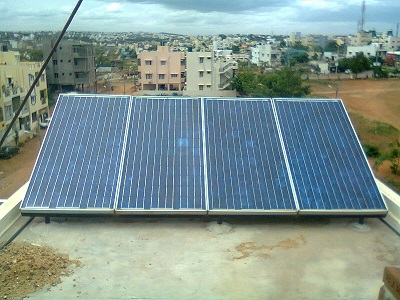

Solar PhotoVoltaic Panels (SPV)

Logo
How does It work :

1) Photovoltaic (PV) is a method of generating electrical power by converting solar radiation into direct current electricity using semiconductors that exhibit the Photovoltaic effect

2) The solar light is converted into Electricity by solar panel, this is then store into battery and can be used whenever required

3) During Day Light, the Battery is Charged Through the Solar Panel and Charges is Stored in the Battery

4) The Battery serves as the reservoir for Electricity to store the Power

5) During the Required time the Charge Stored in Battery can be Used to Light up the Devices in the Home


Uses :

1) It can be used in remote villages or areas where there is no Electricity and light

2) In small and remote villages it serves as Free Power and Electricity and hence people can live happy and bright life

3) It Minimises the use of RAW Power from the GRID

4) It's a Free and Cheapest way to Produce Free and Natural Power

5) It Reduces the Burden on the Power Generating Stations


Some of the Major large scale uses of Photovoltaic solar panels

1) MEGAWATT - Power Generating Stations

2) KILOWATT - Power Supply to the Buildings

3) Transportation and Automobile Industry

4) Home and Normal Daily use

5) Solar roadways, Traffic Signals, Street Lights

6) Solar Powered Satellites and many more applications

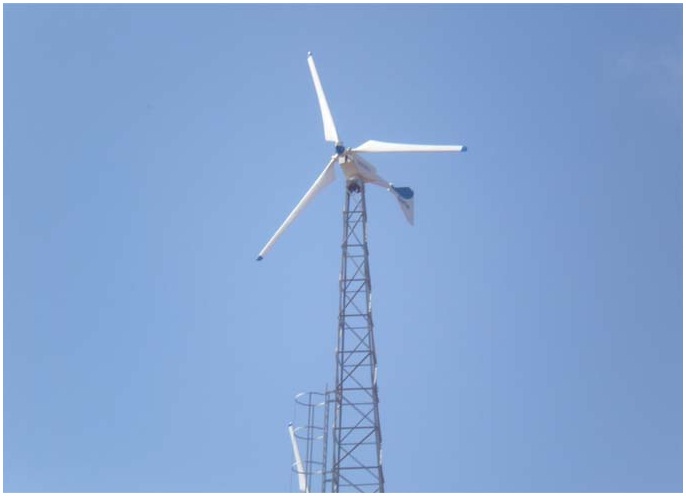

Small Wind Turbines (SWT)

Logo
How does It work :

1) The dynamo uses rotating coils of wire and magnetic fields to convert mechanical rotation into a pulsing direct electric current through Faraday's law of induction.

2) A dynamo machine consists of a stationary structure, called the stator, which provides a constant magnetic field, and a set of rotating windings called the armature which turn within that field.

3) The motion of the wire within the magnetic field causes the field to push on the electrons in the metal, creating an electric current in the wire

4) Dynamo Basically consists of Copper Coils and Magnet

5) When the Magnet Rotates, Magnetic Fields Pushes the Electrons in the Copper Coil to Move Out through the Coils and Hence the Electrical Fields are Generated in the Coil, this in turn Flows out and the Electricity is Generated

6) When water Fall on this Circular Wheel Mechanism, the AC Dynamo Rotates and Hence Produces the Electricity

7) This Setup Works as the Turbine to Generate Electricity and Power

8) This Electricity can be stored in Batteries and used for various applications whenever needed


Uses :

1) In small and remote villages it serves as Free Power and Electricity and hence people can live happy and bright life

2) Can be used to Power Street Lights and General Power needs

3) It minimises the use of RAW Power from the GRID

4) It's a Free and Cheapest way to Produce Free and Natural Power

5) It Reduces the Burden on the Power Generating Stations

6) It can be used in remote villages or areas where there is no power and Light

7) It Minimises the use of RAW Power from the GRID

8) Safe to use

9) It's a Free and Cheaper method to Produce Free and Natural Power


Disadvantages :

1) Always Minimum Flow of Water must be Maintained to Generate Electricity

2) During Summer or when there is No Rain-No water Situation these are of no use


Some of the other Large Scale uses for the water turbines

1) GIGAWATT - Sea or Ocean Power Generating Stations

2) MEGAWATT - Power Generating Stations (DAMS, WATER FALLS and RESERVOIRS)

3) KILOWATT - Power Supply to the Buildings, Villages from River Water of Small Water Falls

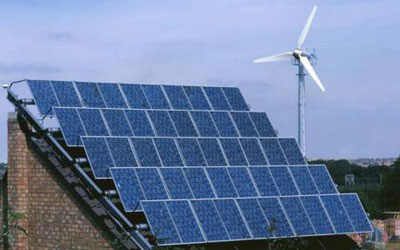

Wind & Solar PV Hybrid (SWT+SPV)

Logo
How does It work :

Part A - DC Motor (Wind Turbine)

1) The DC Motor (Wind Turbine) uses rotating coils of wire and magnetic fields to convert mechanical rotation into a pulsing direct electric current through Faraday's law of induction.

2) A DC Motor (Wind Turbine) machine consists of a stationary structure, called the stator, which provides a constant magnetic field, and a set of rotating windings called the armature which turn within that field.

3) The motion of the wire within the magnetic field causes the field to push on the electrons in the metal, creating an electric current in the wire

4) DC Motor (Wind Turbine) Basically consists of Copper Coils and Metal Discs or Rings

5) When Power is Fed to this DC Motor (Wind Turbine) it works as the Motor, Electrical Power converted into Mechanical Power

6) When it is used in Reverse, i.e., when mechanically Rotated, this Produces Electricity as same as a Dynamo. Mechanical Power Converted To Electrical Power

7) When wind hits the Propeller DC Motor (Wind Turbine) Rotates and Hence Produces the Electricity

8) This Setup Works as the Turbine to Generate Electricity and Power

9) This Electricity can be stored in Batteries and used for various applications whenever needed


Part B - Solar PV Module

1) Photovoltaic (PV) is a method of generating electrical power by converting solar radiation into direct current electricity using semiconductors that exhibit the photovoltaic effect

2) The solar light is converted into Electricity by solar panel, this is then store into battery and can be used whenever required

3) During Day Light, the Battery is Charged Through the Solar Panel and Charges is Stored in the Battery

4) The Battery serves as the reservoir for Electricity to store the Power

5) During the Required time the Charge Stored in Battery can be Used to Light up the Devices in the Home


Uses :

1) In small and remote villages it serves as Free Power and Electricity and hence people can live happy and bright life

2) Can be used to Power Street Lights and General Power needs

3) It minimises the use of RAW Power from the GRID

4) It can be used in remote villages or areas where there is no power and Light

5) It Minimises the use of RAW Power from the GRID

6) Safe to use

7) It's a Free and Cheaper method to Produce Free and Natural Power


Some of the Major large scale uses of Photovoltaic solar panels

1) MEGAWATT - Power Generating Stations

2) KILOWATT - Power Supply to the Buildings

3) Transportation and Automobile Industry

4) Offices, Buildings, Home and Normal Daily use

5) Solar roadways, Traffic Signals, Street Lights

6) Solar Powered Satellites and many more applications
