Model: DIL VPS 120V 20A 2400W ELH
Description : 60V to 120V, 20A DC, 2400 Watt Variable Power Supply Designed for ELH 120V LAMP
Digidon Labs design, develop and manufactures this “High Power, High Efficiency - AC to DC Power Supply”
Digidon Labs 2400W Variable Power Supply, Designed for ELH 120V Lamp
This is a specially designed Variable Power Supply designed considering the uses in Solar Cell Testing Facility in Industries which uses ELH 120V Lamps.
ELH Lamps are used for illuminating the Solar Cells while Testing, Quality Control, Heat Run Tests etc.,
Powerful Bright Light more than 1000W/m² is required for Solar Cell Testing (depending on the user)
ELH Lamps are used to achieve this brightness. Some Manufacturers use 120V 300W ELH Lamps, some use 1000W Sodium Vapour Lamps.
To control the Brighness of the Light a Variable Power Supply is needed.
Under different Test Environments, the Brighness of the ELH Lamp has to be varied, to achieve this a Variable Power Supply is required.
In order to Vary the Brightness, the Voltage and Current of the Power Supply has to be Controlled accordingly.
We provide 60V to 120V, 20A DC, 2400 Watt Variable Power Supply Designed for ELH 120V LAMPS.
This is a Variable Power Supply, having Output Voltage Range from 60V to 120V and Maximum Current of 20A DC with Maximum Output of 2400 Watt.
Using this Variable Power Supply one can vary the Brightness of the ELH Lamps from 300W/m² to 1250W/m² depending on the Power Supply and Lamp Rating.
This Model of Variable Power Supply can Support Upto 8 No's of 120V 300W ELH Lamps connected in Parallel, Upto 8 No's x 300W = 2400 Watt.
Key Feature:
- Single POT Voltage Control for Easy Operation
- Auto Current Limit as per Load Requirements
- CV LED shows Power ON Status
- IGBT Module Based High Power AC to DC Power Supply
- High Efficiency Power Supply > 90%
- EMI Filters, MCB for Input Protection
- Analogue Panel Meters for Voltage and Current Monitoring
- Robust, Rugged and Proven design for Extreme Conditions
- Tested method of Power Utilisation & Management Topology
- Best Available Branded and Quality Materials used for Assembly of the Device
- Supports Upto 8 No's of 120V 300W ELH Lamps connected in Parallel
Technical Specifications:
Device |
Variable Power Supply 60V to 120V, 20A DC, 2400 Watt |
Model No. |
DIL VPS 120V 20A 2400W ELH |
Datasheet |
Download DIL-VPS-120V-20A-2400W-ELH.pdf |
Warranty |
Limited Warranty DIL-Limited-Warranty.pdf |
AC Input MCB |
2 Pole / 20A / 230VAC |
AC Input Range |
170V to 265V AC, 50Hz |
DC Output |
60-120V, 0-20A DC Max. |
DC Output Voltage |
60V to 120V DC (Manual Voltage Control) |
DC Output Current |
0A to 20A DC (Auto Current Limit) |
Lamp Capacity |
8 No’s of ELH 120V 300W LAMP, 2400 Watt Peak Load |
Load Capacity |
120V @ 20A, 2400 Watt Max. |
Regulation |
± 0.5V DC @ Peak Load |
Efficiency |
90% to 92% @ Rated Input Range |
Cooling |
Forced Air Cooling, 4" FAN, 230V AC, 50Hz |
Output |
Voltage |
Current |
Range |
60V to 120V DC |
0A to 20A DC |

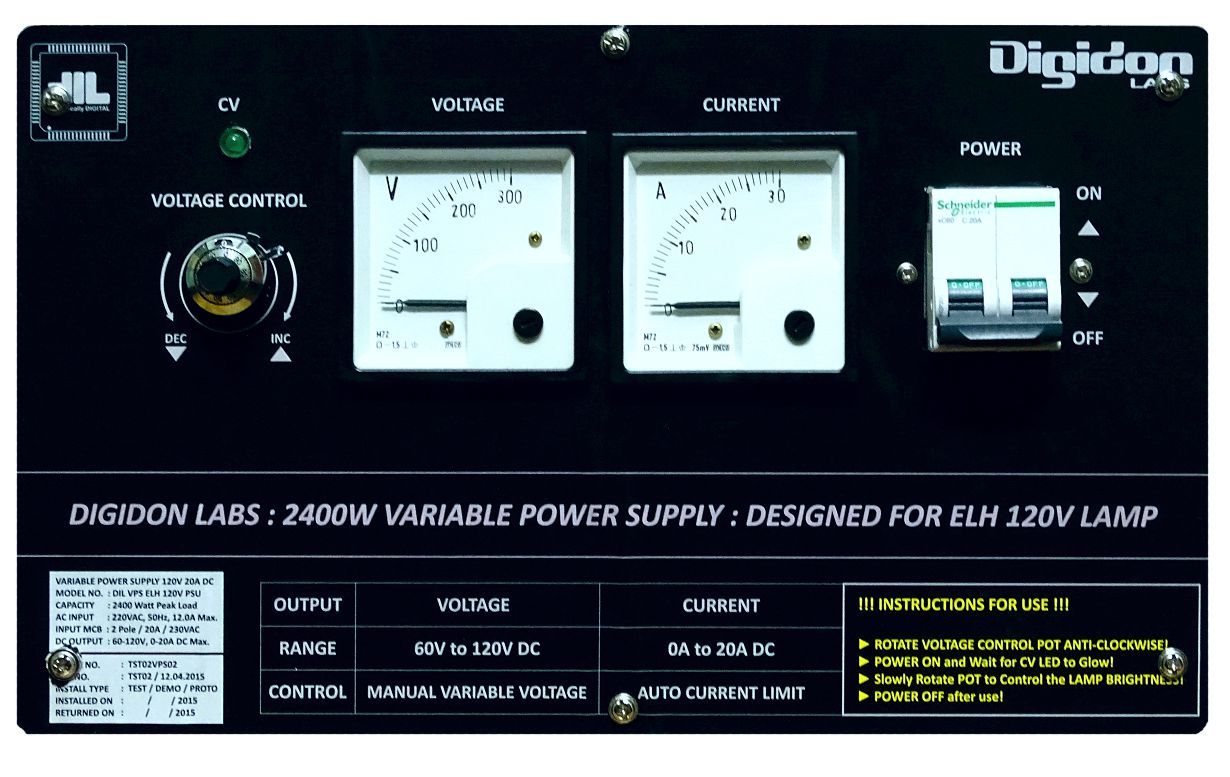

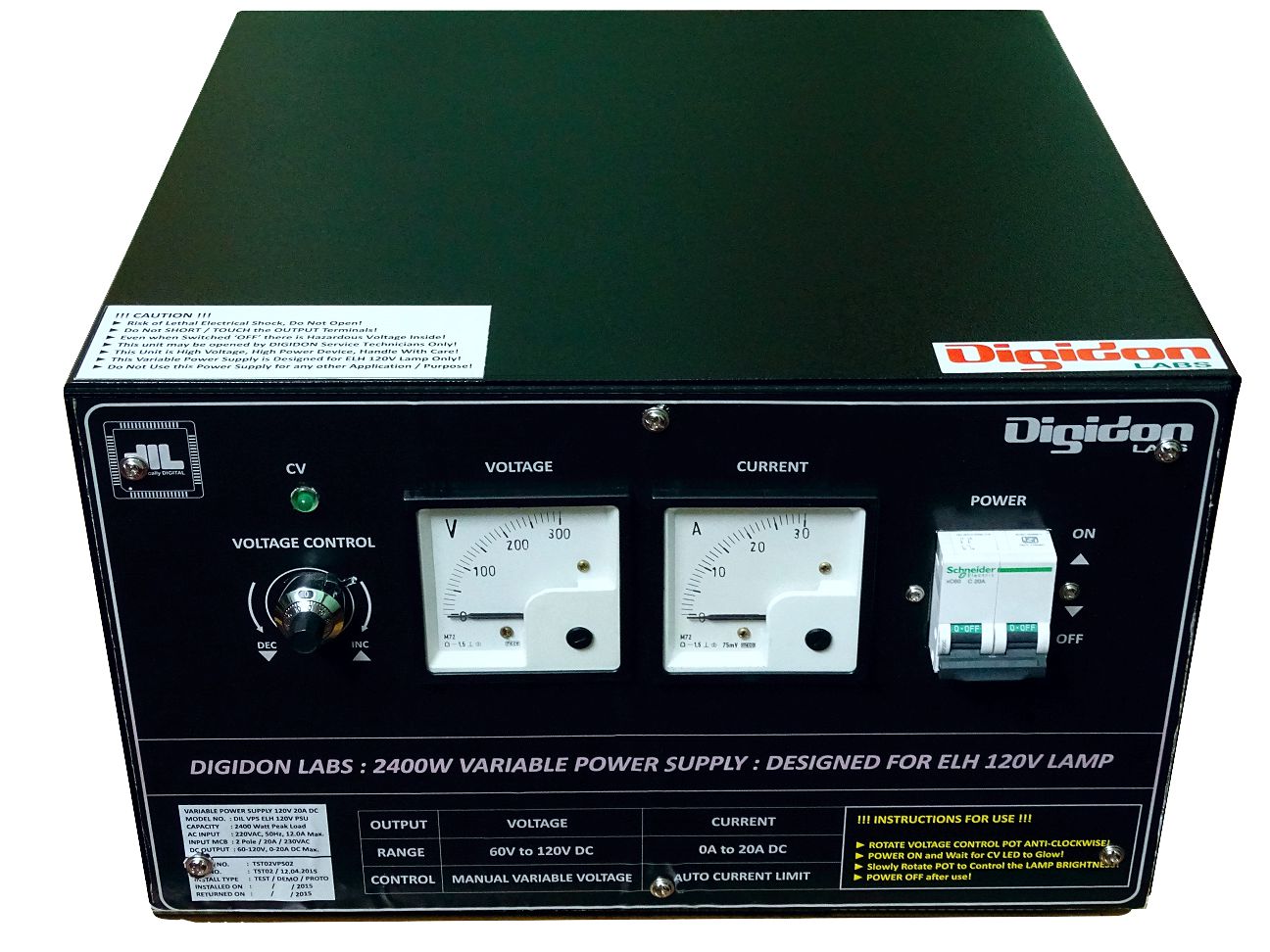

Control |
Manual Variable Voltage |
Auto Current Limit |
CV |
Green LED |
Power ON Status |
Voltage Control |
Variable POT |
10 Turns with Dial |
Power |
MCB |
Input Control |
Voltmeter |
DC Voltage |
0 to 300V DC |
Ammeter |
DC Current |
0 to 30A DC |

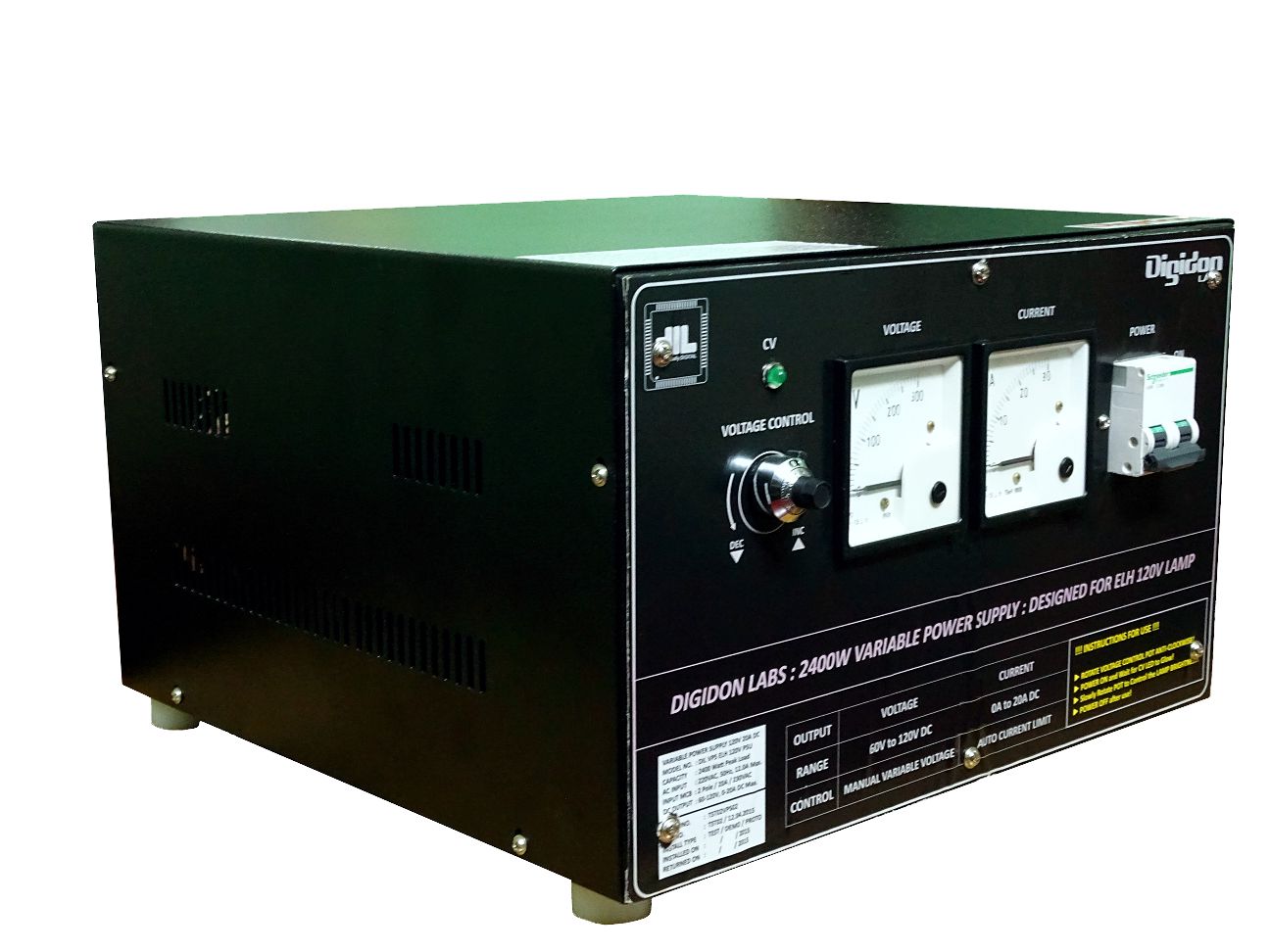

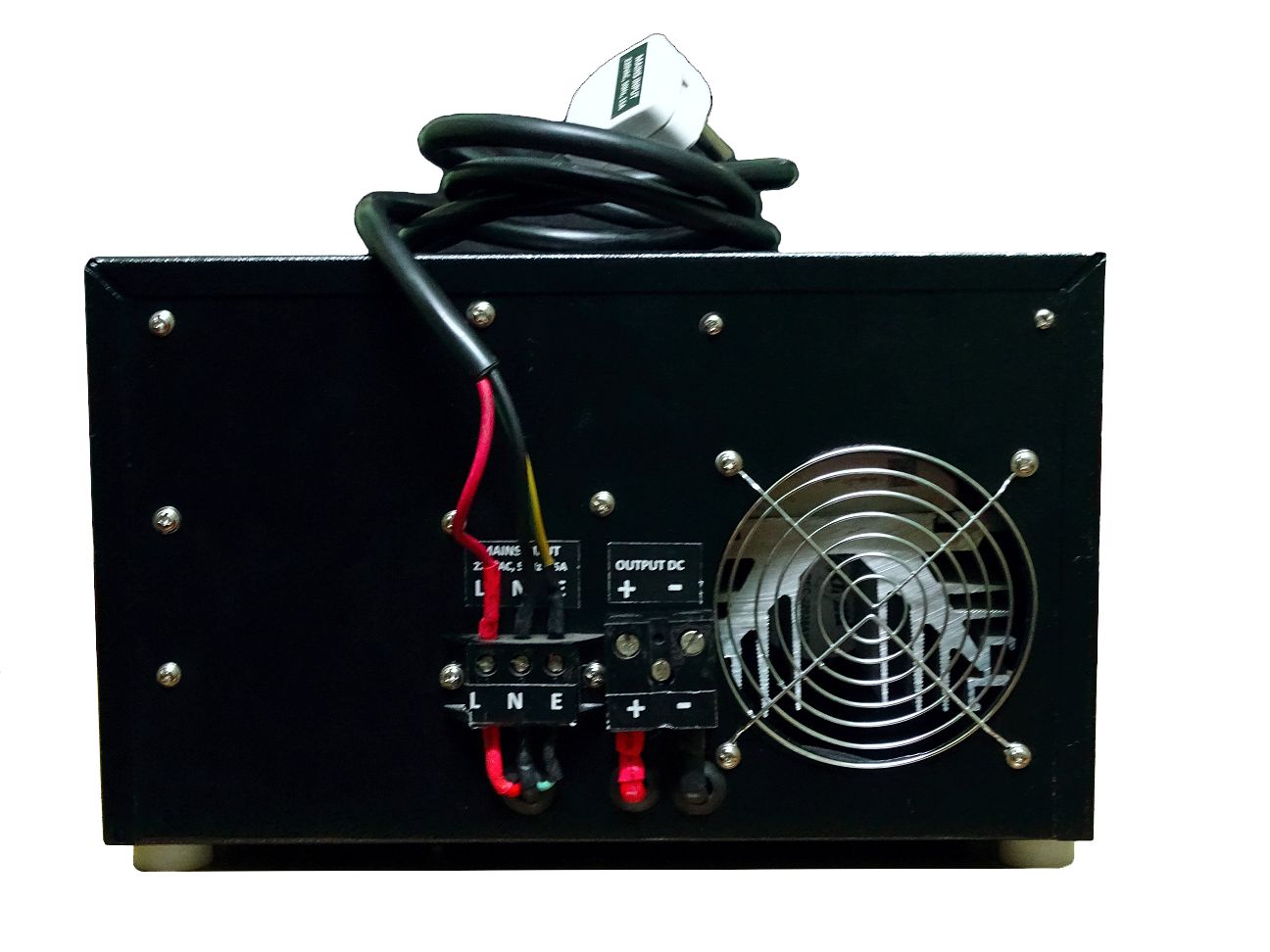

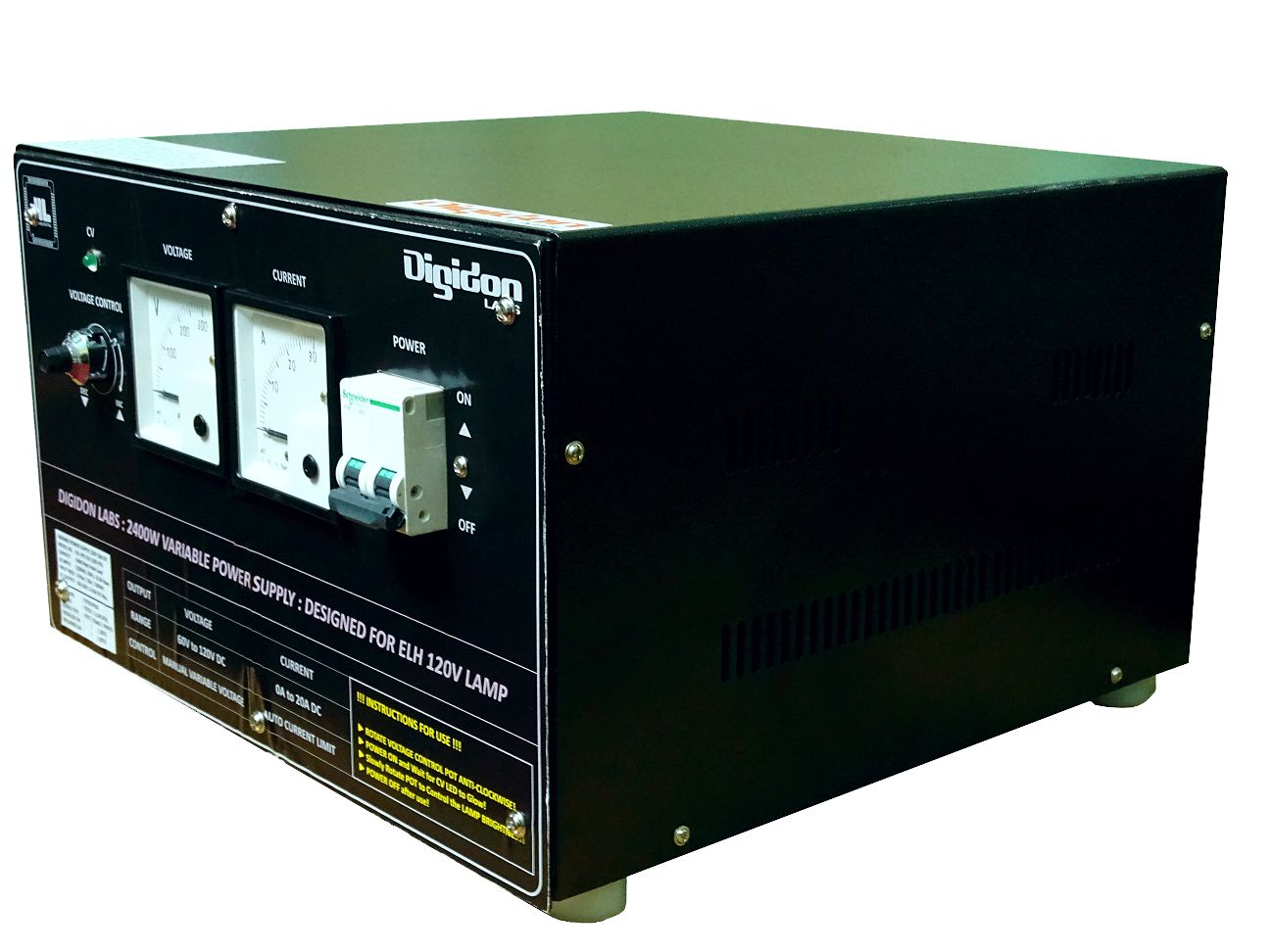

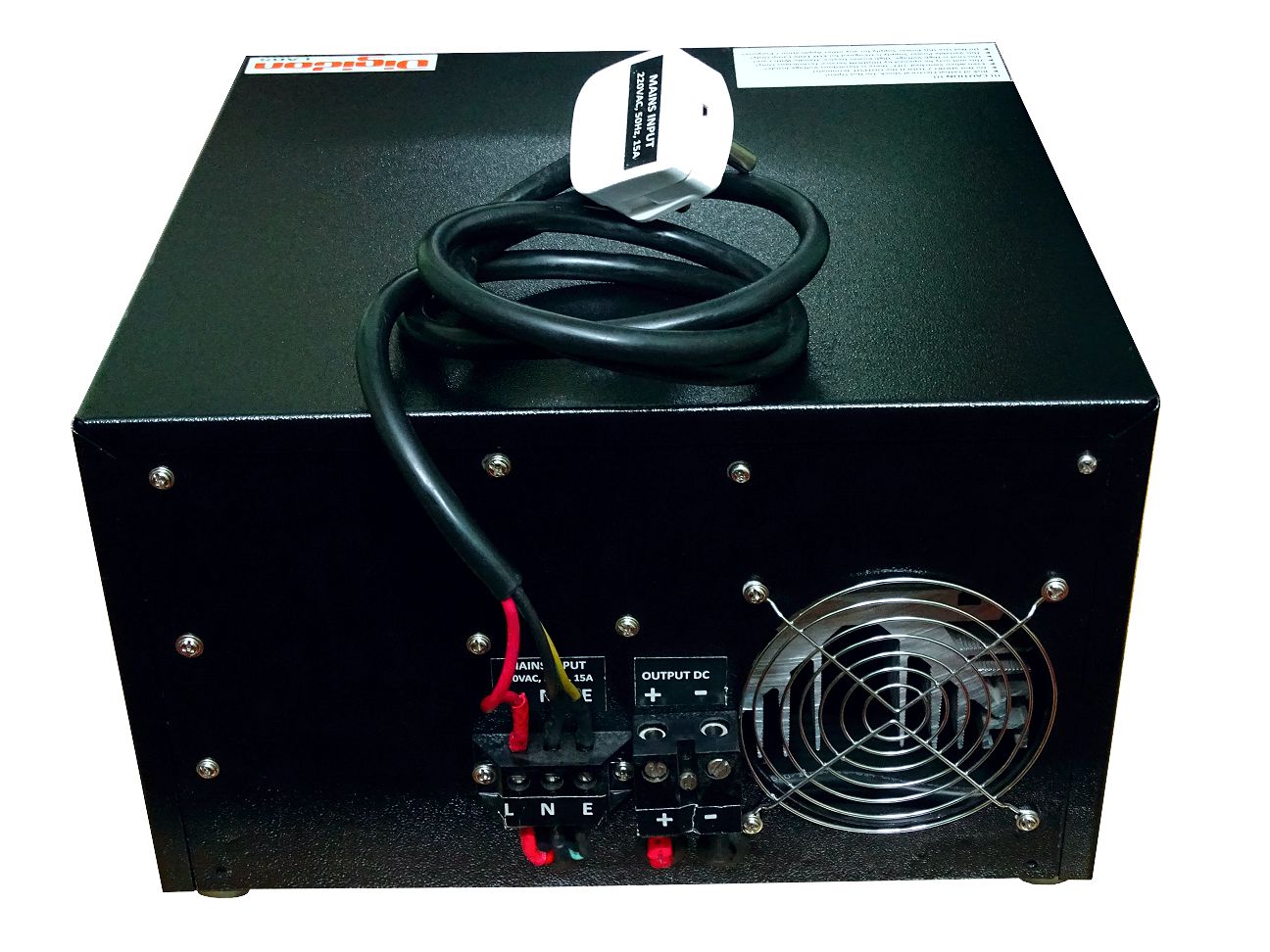

Input AC |
3 Way Input Terminal |
170V to 265V AC, 50Hz, : LNE |
Output DC |
2 Way Output Terminal |
60V to 120V DC, 20A : +VE, -VE |
